Part 5: Regulatory Information
Updated 11 months ago
Obelisk components and units are not only tested in manufacturing, but also to specific regulatory standards. To date, Obelisk has completed the relevant testing and satisfied the requirements of the ETL Safety, FCC, and CE certifications.
In order for the Obelisk to meet FCC Class A requirements, the unit must be in the following conditions
FCC Radiated Emissions Class A Conditions
PSU directly on top of unit with divider and bias of /2-2 and EPOT value of 20
FCC Conducted Emissions Class A Conditions
PSU directly on top of unit with divider and bias of /8+0 and EPOT value of 60

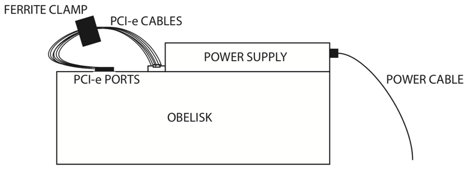

Figure 1. Demonstrates the proper setup configuration for your Obelisk
Do not remove the ferrite clamp from the PCI-e cables.
